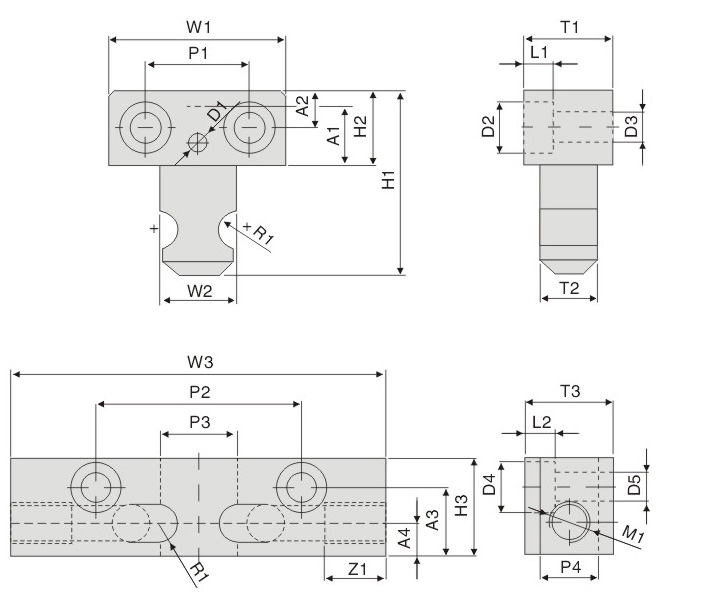

Slide Lock Sets
JH066
| Material | Surface Treatment | Appurtenance |
| S50C | Yellow paint | Screw, dowel pins |
| Locate | Type | |
| JH066-A | JH066-B | |
| A1 | 5 | 6 |
| A2 | 12.5 | 12 |
| A3 | 23 | 21 |
| A4 | 11 | 10 |
| D1 | Φ6 | Φ5 |
| D2 | Φ17 | Φ10.5 |
| D3 | Φ10 | Φ6.5 |
| D4 | Φ17 | Φ11 |
| D5 | Φ10 | Φ6.5 |
| H1 | 62.5 | 48 |
| H2 | 30 | 20 |
| H3 | 33 | 28 |
| L1 | 10 | 6.5 |
| L2 | 10 | 6.5 |
| M1 | M14*2.0 | M12*1.75 |
| P1 | 35 | 25 |
| P2 | 70 | 60 |
| P3 | 26 | 18 |
| P4 | 20 | 12.5 |
| R1 | R6.5 | R4.25 |
| T1 | 30 | 20.5 |
| T2 | 19.5 | 12 |
| T3 | 25 | 20.5 |
| W1 | 60 | 40 |
| W2 | 25.5 | 17.5 |
| W3 | 127.5 | 86 |
| Z1 | 21 | 20 |
Order: Type
