Guide Rails
JH059
| Material | Hardness | Heat Treatment |
| SKS3 | HRC53°~56° | Vacuumed |
Contact Us
| Type | S | V | R |
| JH059-1 | 10 | (W-5) | R≤0.8 |
| JH059-2 | 12 | ||
| JH059-3 | 15 |

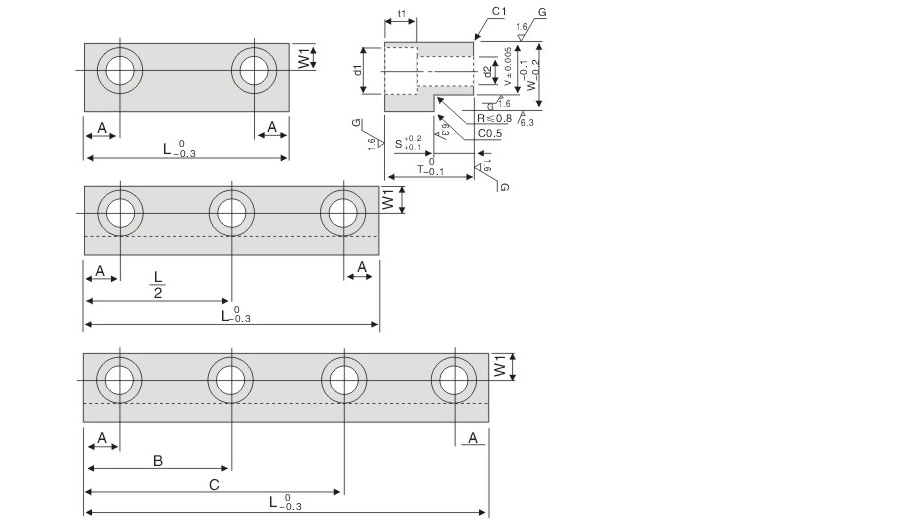

Bolt hole's size
| w | T | d1 | d2 | t1 | W1 |
| 15 | 20 25 | 9.5 | 5.5 | 6 | 6 |
| 20 | 20 | 11 | 6.5 | 7 | 9 |
| 25 30 | 14 | 9 | 9 | 9 | |
| 25 | 20 25 30 | 14 | 9 | 9 | 10 |
| Catalog No. | T | L | Bolt hole No. | A | B | C | |
| Type | W | ||||||
| JH059-1 JH059-2 JH059-3 |
15 | 20 25 |
40 50 60 | 2 | 7.5 | 一 | 一 |
| 70 80 90 100 110 120 | 3 | 一 | 一 | ||||
| 130 | 4 | 40 | 90 | ||||
| 140 | 45 | 95 | |||||
| 150 | 53 | 97 | |||||
| 20 | 20 25 30 |
40 50 60 70 80 90 | 2 | 10 | — | — | |
| 100 110 120 130 140 150 | 3 | — | — | ||||
| 160 | 4 | 55 | 105 | ||||
| 180 | 60 | 120 | |||||
| 200 | 70 | 130 | |||||
| 25 | 20 25 30 |
40 50 60 70 80 90 | 2 | 10 | — | — | |
| 100 110 120 130 140 150 | 3 | — | — | ||||
| 160 | 4 | 55 | 105 | ||||
| 180 | 60 | 120 | |||||
| 200 | 70 | 130 | |||||
Order: Catalog No.WxTxL
Remark:
1. Special product is available.
2.The price is per the provided drawing.
