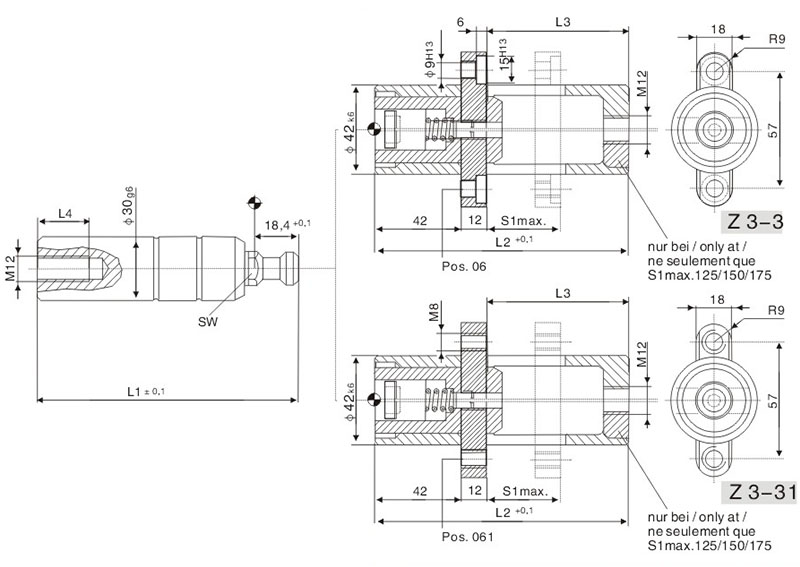

Internal Latch Lock

Z3-3/Z3-31

PDF Download:

View pdf All catalogues

product details

Note:

Please precisely process symmetrical installation in the mold processing, Use at least two sets of molds, please according to the load of different molds Decide on quantity and specifications.

S1 mas.	L1	L2	L3	L4
50	125	130	76	50
	175
	225
75	175	155	101
	225
100	175	180	126
	225
125	275	205	151
	325
150	275	230	176
	325
175	275	255	201
	325
