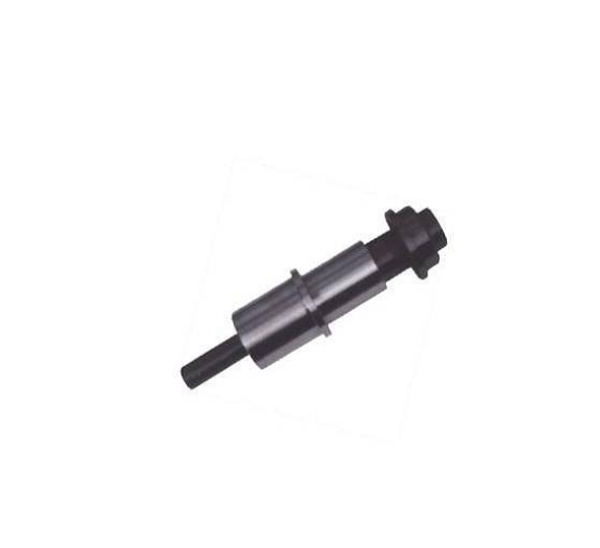

Characteristics:
Machinery interlocking design makes structure much simpler and installation more convenient comparing with other second ejection series.
| Type | SW1 | 16 | 15 | 14 | 13 | 12 | I1 | d9 | d8 | d7 | d6 | d5 | d4 | d3 | d2 | H1 | d1 | H2 | |||
| min | max | min | max | ||||||||||||||||||
| Z1698/16xH2 | 12 | 15 | 5 | 5 | 45 | 28 | 8 | 52 | 44 | 52 | 28 | 36 | 44 | M10 | 31 | 4 | 68 | 16 | 4 | 68 | |
| 20xH2 | 15 | 20 | 6 | 6 | 60 | 30 | 10 | 59 | 51 | 59 | 34 | 43 | 51 | M12 | 34 | 5 | 92 | 20 | 5 | 92 | |
| 26xH2 | 20 | 25 | 8 | 8 | 74 | 38 | 12 | 73 | 64 | 73 | 43 | 54 | 64 | M16 | 44 | 6 | 120 | 26 | 6 | 120 | |
• Order example for first item(Type No.D1 x Pcs): Z1698-16x10
