Sprue Bushing

Home / Products / Sprue Bushing / Point Sprue Bushing

Products

Point Sprue Bushing

JHN08

Material Hardness
SKH-51 HRC59°~61°



PDF Download:
View pdf All catalogues
Contact Us

product details



Catalog N0. 0.01mm unit P A°  K° B

Without 2A
0.1 mm unit

 Only 1A
0.1 mm unit		 Only 3A
1° unit		 Only 4A
0.1mm unit		 H G SR
Type Shape D L No need unit BT037-1 0.01mm unit BT037-2 C V S° R

(B size fixed)

JHN08-1



(B size Appointed)

JHN08-2

1A



2A





3A





4A





5A

 2 6.00~20.00 0.3  0.4 1

20























30

 3 3.00~5.00 0.2~0.4 1.3~1.9 1~45 0.4~0.8  3 0.7 0.60
2
3
2.5 8.00~25.00 0.3  0.4  0.5 1 4 4.00~6.00 0.2~0.5 1.5~2.4 0.6~1.0 4 1 0.75
2
3
3 10.00~40.00 0.5  0.6  0.8 1 6 6.00~9.00 0.3~0.8 2.0~2.9 0.8~1.5 5 1.2 1.00
2 6.00~8.00
3 6.00~7.00
4 0.6 1 6.00~30.00 2.5~3.9 6 1.00
2
3 6.00~20.00
0.8  1.0 1 6.00~30.00 1.25
2
3 6.00~20.00
5 15.00~60.00 0.8  1.0 1 10 6.00~35.00 0.5~1.5 3.5~4.9 1.0~2.0 8 1.5 1.25
2 6.00~30.00
3
1.2 1 6.00~30.00 1.50
2
3 6.00~20.00
6 1.0 1 6.00~50.00 4.0~5.9 1~50 1.5~3.0 9 1.25
2
3 6.00~40.00
1.2  1.4 1 6.00~40.00 1.50
2
3 6.00~30.00
8 1.2  1.4 1 6.00~50.00 4.5~7.9 1~60 2.0~4.0 11 1.50
2
3
1.6 1 2.00
2
3

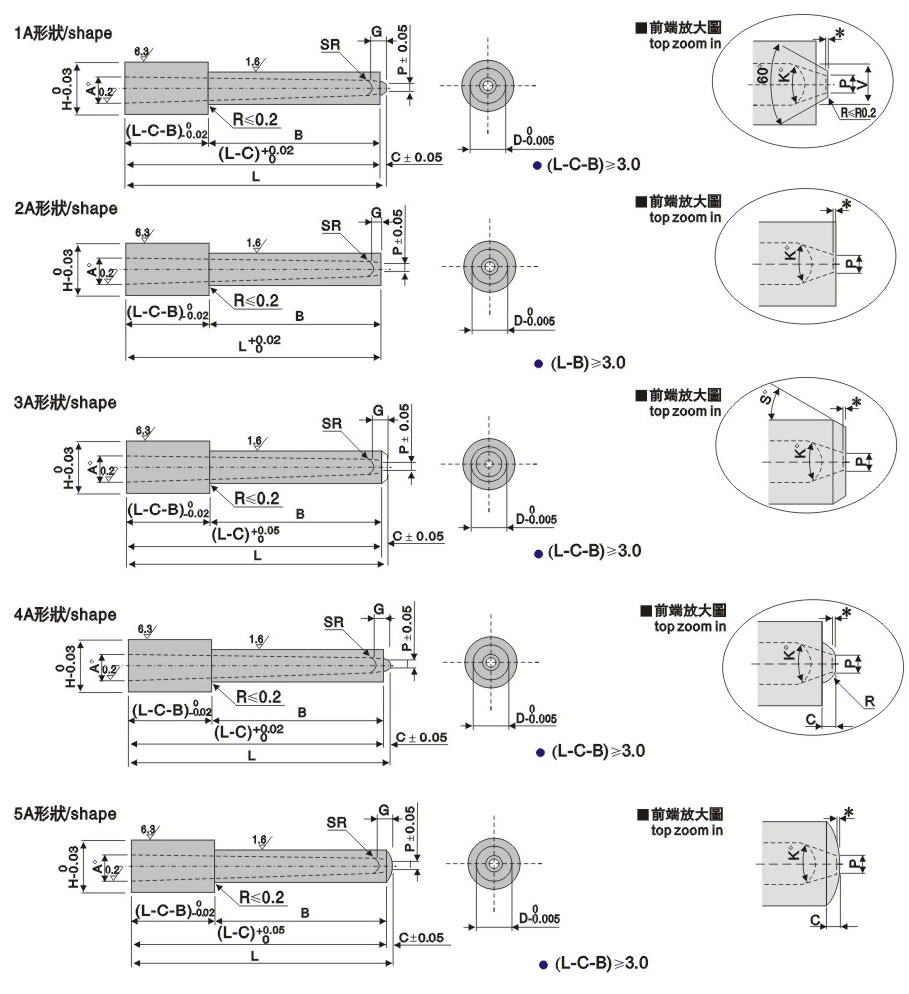

C size only for 3A 4A 5A, V size only for 1 A, S angle for 3A, R size only for 4A.

BT037-2: (L-C-B)≥3.0   2A(L-B)≥3.0



Catalog N0. L @/P(1~4P)
Type D 1A 2A 3A 4A 5A
JHN08-1 2 6.00~20.00 18,720 17,290 17,580 18,720 18,720
2.5 8.00~25.00 18,720 17,290 17,580 18,720 18,720
3 10.00~25.00 13,110 11,690 11,970 13,110 13,110
25.01~40.00 14,060 12,640 12,920 14,060 14,060
4 10.00~25.00 13,400 11,970 12,260 13,400 13,400
25.01~40.00  14,160 12,730 13,020 14,160 14,160
5 15.00~25.00 12,830 11,400 11,690 12,830 12,830
25.01~40.00 13,400 11,970 12,260 13,400 13,400
40.01- 60.00 14,160 12,730 13,020 14,160 14,160
6 15.00~25.00 12,830 11,400 11,690 12,830 12,830
25.01~40.00 13,400 11,970 12,260 13,400 13,400
40.01- 60.00 14,160 12,730 13,020 14,160 14,160
8 15.00~25.00 13,020 11,590 11,880 13,020 13,020
25.01~40.00 13,680 12,260 12,540 13,680 13,680
40.01- 60.00 14,540 13,110 13,400 14,540 14,540
Catalog N0. L @/P(1~4P)
Type D 1A 2A 3A 4A 5A
JHN08-2 2 6.00~20.00 20,430 19,000 19,290 20,430 20,430
2.5 8.00~25.00 20,430 19,000 19,290 20,430 20,430
3 10.00~25.00 14,250 12,830 13,110 14,250 14,250
25.01~40.00 15,300 13,870 14,160 15,300 15,300
4 10.00~25.00 14,630 13,210 13,490 14,630 14,630
25.01~40.00  15,390 13.970 14,250 15,390 15,390
5 15.00~25.00 13,970 12,540 12,830 13,970 13,970
25.01~40.00 14,630 13,210 13,490 14,630 14,630
40.01- 60.00 15,390 13,970 12,250 15,390 15,390
6 15.00~25.00 13,970 12,540 12,830 13,970 13,970
25.01~40.00 14,630 13,210 13,490 14,630 14,630
40.01- 60.00 15,390 13,970 14,250 15,390 15,390
8 15.00~25.00 14,160 12,730 13,020 14,160 14,160
25.01~40.00 14,920 13,490 13,780 14,920 14,920
40.01- 60.00 15,870 14,440 14,730 15,870 15,870
