Sling Ejector Pin
JHN04
| Material | Hardness |
| 1.8159 | HRC45°±3° |
| Type | Dimension | ||||||
| A | B | C | D | E | G | H | |
| JHN04-1 | 6 | 12 | 14 | 10 | 14 | 6 | 10 |
| JHN04-2 | 8 | 14 | 16 | 12 | 16 | 8 | 12 |
| JHN04-3 | 10 | 16 | 18 | 14 | 18 | 8 | 14 |
| JHN04-4 | 12 | 16 | 18 | 16 | 20 | 8 | 25 |
Special products' length are between 275~350mm.

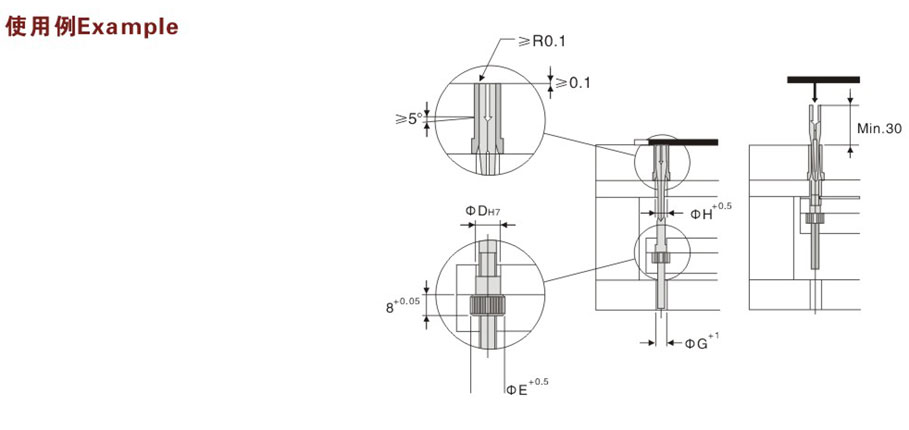

Apply to release elasticity from bottom, the ejector device can adjust to required eject height in advance. Easy to install and keep 90° with the devided surface when install it.
