Slider Units

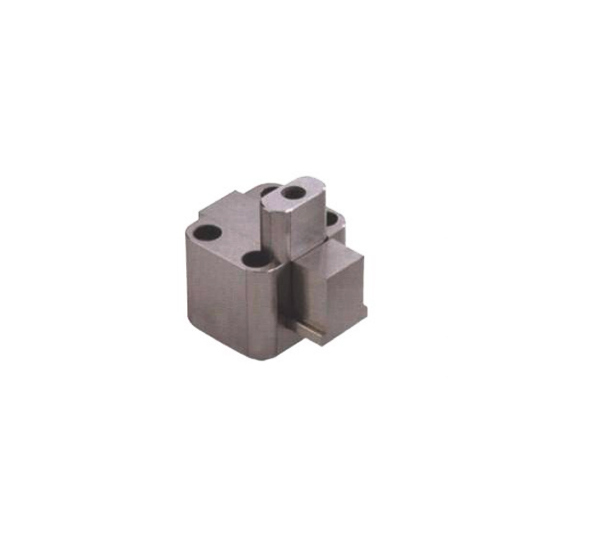

Z1813

PDF Download:
View pdf All catalogues
Contact Us

product details

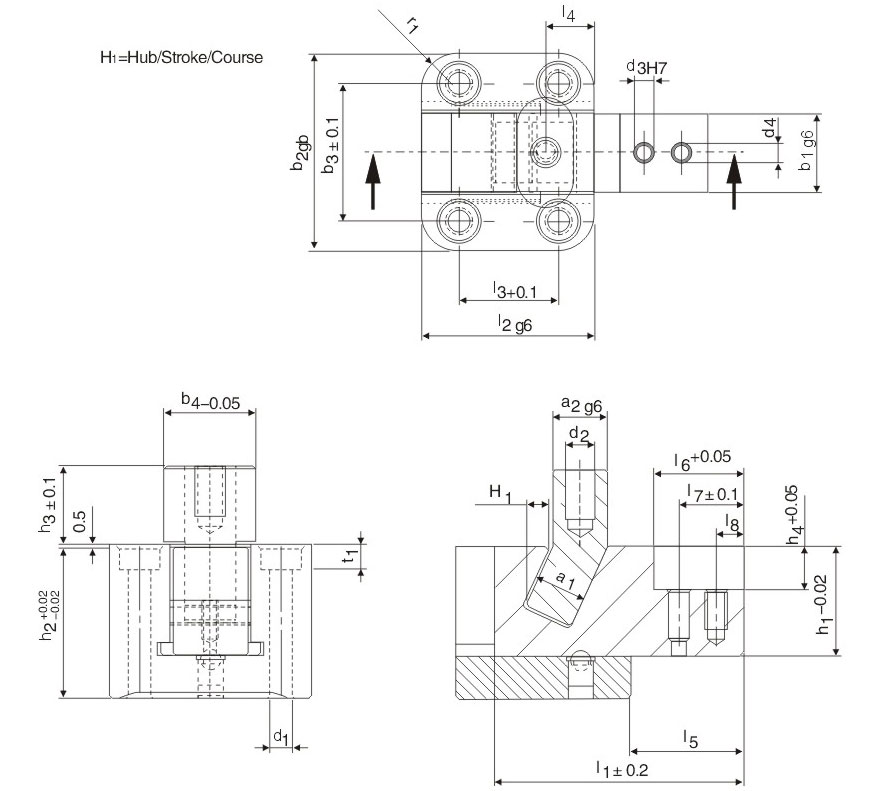

Nr. /No. t1 r1 I8 I7 I6 I5 I4 I3 I2 I1 d4 d3 d2 d1 h4 h3 h2 b4 b3 b2 a2 H2 a1 b1 h1
Z1813/10x16x22 4.6 6 5.5 13 18 22.9 10 20 35 52 M4 4 M6 4.5 8 17 30 22 20 40 11 4.6 10 16 22
Z1813/12x25x30 6.8 7 7 16 20 26.8 15 35 50 68 M5 5 M8 6.6 10 20 40 30 40 55 13 7 12 25 30

 Order example for first item(Type No. x Pcs): Z 1813/10 x 10
