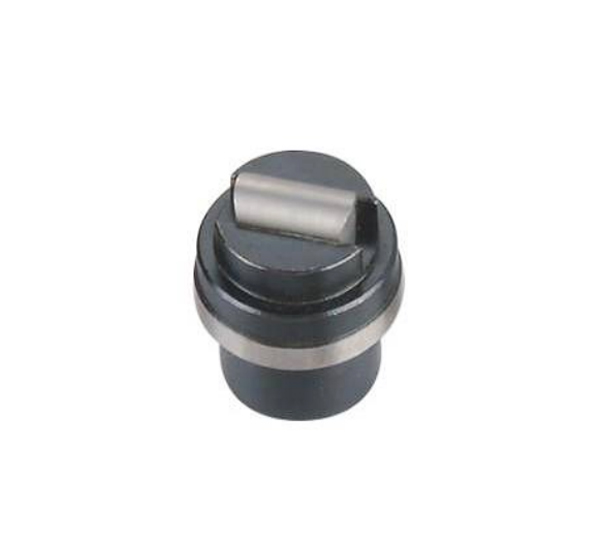

Slide Retainers
JHN23
| Material | Hardness |
| H-13steel | HRC48°-52° |
Inch

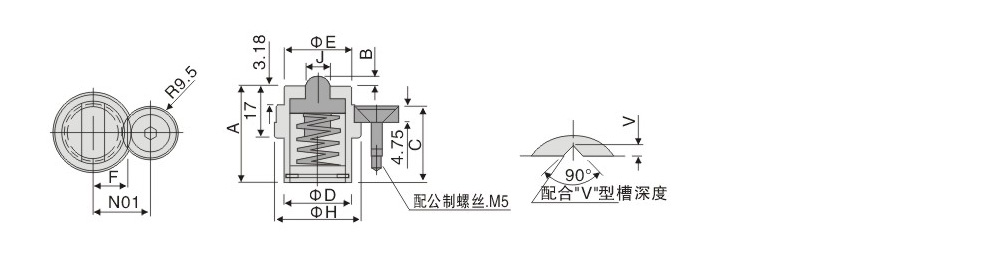

| Type | Dimension | load | |||||||||
| A | B | C | ΦD | ΦE | *F | ΦH | J | N | V | Kgf | |
| JHN23-01 | 27.43 | 1.83 | 20.2 | 15.75 | 16 | 9.52 | 22 | 4.78 | 17 | 2.3 | 4.5 |
| JHN23-02 | 33.53 | 3.07 | 26.3 | 18.8 | 19 | 10.67 | 25 | 6.35 | 18.2 | 3.9 | 9 |
| JHN23-03 | 32 | 3.78 | 24.76 | 22.1 | 22 | 11.89 | 28 | 7.92 | 19.4 | 4.9 | 18 |
Simple and economical, firmly and durable. Can use one or more clamps to bear more load.
