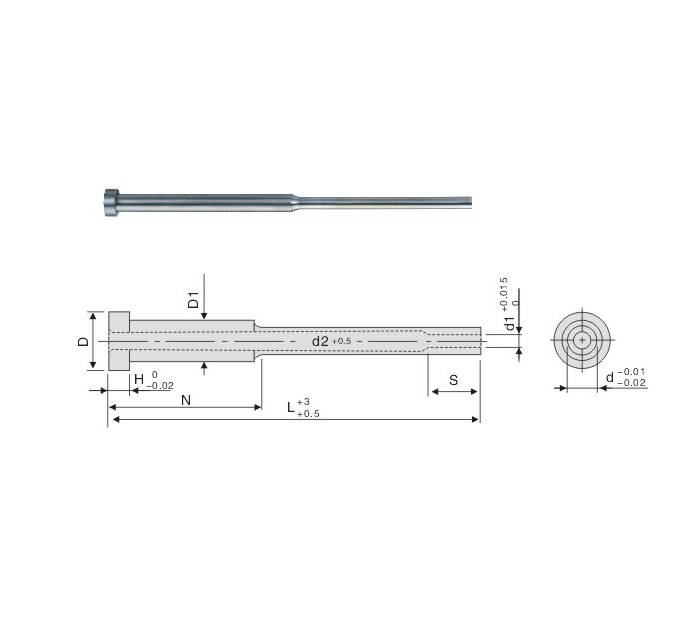

Shoulder Ejector Sleeve Pins
JH009
| Material | Inner Hardness | Surface Hardness | Heat Treatment |
| FDAC | HRC38°±2° | HV1000°±100° | Nitrided |
| HRC52°±2° | HRC52°±2° | Vacuumed |
| d1 | Tolerance | d | Tolerance | Catalog No. | D | Tolerance | H | Tolerance | N | ||
| Type | D1 | Tolerance | |||||||||
| 1.5 | +0.01 0 |
2 | -0.01 -0.02 |
JH009 | 3.5 | -0.01 -0.02 |
7 | 0 -0.3 |
4 | 0 -0.02 |
0 N |
| 2 | 2.5 | 4 | 8 | 6 | |||||||
| 2 | 3 | 5 | 9 | ||||||||
| 2.5～2 | +0.015 0 |
3.5 | 6 | 10 | |||||||
| 2.5～2 | 4 | 7 | 11 | ||||||||
| 3 |
+0.01 |
4.5 | 8 | 13 | 8 | ||||||
| 2 | 5 | 9 | 14 | ||||||||
| 3.5～3 | 6 | 10 | 15 | ||||||||
| 3～4 | 8 | 12 | 17 | ||||||||
| 3～5 | 8 | 13 | 18 | ||||||||
| 4～6 | 10 | 14 | 19 | ||||||||
| 4～8 | 10 | 15 | 20 | ||||||||
| 4～8 | 12 | 16 | 21 | 8~12 | 0 -0.3 |
||||||
| The inner diameter can be arbitrarily defined within the inner and outer full grinding concentricity within 0.01 |
20 | 25 | |||||||||
| 25 | 30 | ||||||||||
| 30 | 35 | ||||||||||
Order:Catalog No.D1×d×d1×L×N
Remark:
• Special product is available.
• Price is negotiable if quantity of each size is more than 50 in one order.
• Length appointed be cut less than 10mm.
