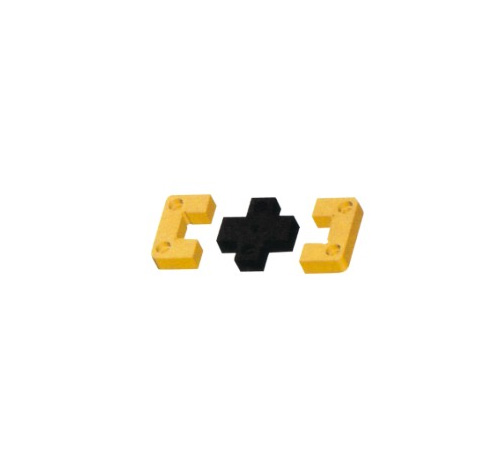

Positioning Components-Locking Block Sets

JHN18

Material Whole Hardness Surface Hardness
A-2 HRC50°~56°
H-13 HRC50°~56° HRC80°
PDF Download:
View pdf All catalogues
Contact Us

product details

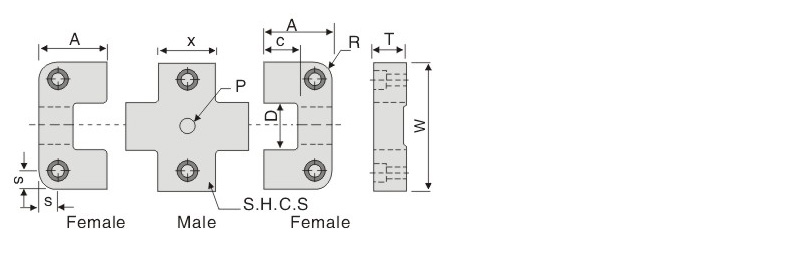

Type Dimension
W
+.0000
-.0004
T
+.000
-.002
X
+.000
-.005

A
+.00

-.002

C
±.01
D
.0001/.0002
R S
±.01
P
+.001
-.000
Hexagon socket screw
S.H.C. S
JHN18-50x87 2.000 .500 .875  1.375 .65 .750 .187 .312 .250 #10-32x5/8"
JHN18-75x137     1.375   1.12 1.250 .250  .375 .313 1/4-20x3/4"
JHN18-75x187     1.875
JHN18-100x137     1.375   1.500 .500 .500 .375 3/8-16x1"
