Oilless Flange Bushings

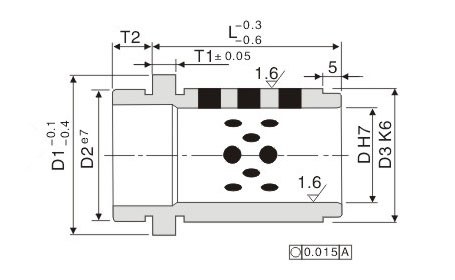

JH103 - Shoulder Style
| Material | 650# Bronze+ Graphite |
| Catalog No. | T1 | T2 | D1 | D2 | D3 | L | ||||||||||||||
| Type | D | 12 | 17 | 22 | 27 | 36 | 46 | 56 | 66 | 76 | 86 | 96 | 116 | 136 | 156 | |||||
| JH103 | 9 | 3 | 3 | 16 | 14 | 14 | ○ | ○ | ○ | ○ | ○ | |||||||||
| 10 | ○ | ○ | ○ | ○ | ○ | |||||||||||||||
| 14 | 6 | 6 | 25 | 20 | 20 | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||
| 15 | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||||||
| 18 | 8 | 31 | 26 | 26 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||
| 20 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||||
| 22 | 36 | 30 | 30 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
| 24 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||
| 30 | 47 | 42 | 42 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
| 32 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||
| 40 | 10 | 12 | 60 | 54 | 54 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||
| 42 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||
• Order: Catalog No.DxL
