Replaceable Date Marking Insert
JH069
| Material | Hardness | Temperature resistant |
| S136 | HRC48°~50° | 500° |
Characteristic:
• Use for denote the date in plasticmolding product.
• Model of specification:From 6 to 16.
• Could be used permanence with clear characters, just need replace the enchased components.
• No need for disassemble the mold, have no influence on produce plan. If need replace date component,
please rotate it towards hour hand.

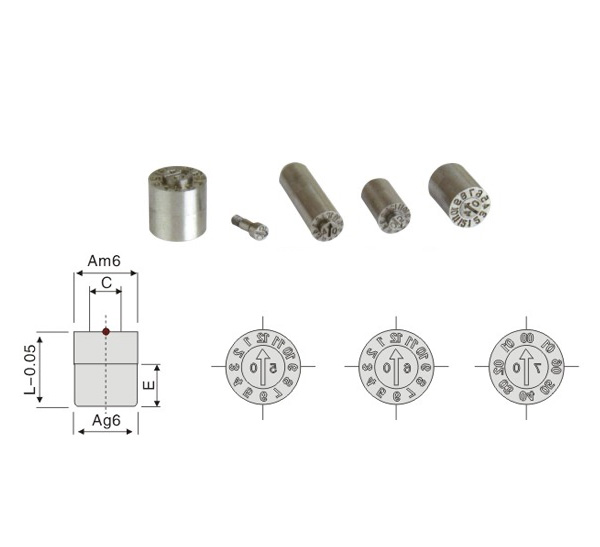

| Catalog No. | C | E | L | Unit | |
| Type | A | ||||
| JH069 | 6 | 3.0 | 4 | 10 | 10.0 0 -0.02 |
| 8 | 4.0 | 6 | 10 | 10.0 0 -0.02 |
|
| 10 | 5.0 | 8 | 10 | 10.0 0 -0.02 |
|
| 12 | 6.0 | 10 | 12 | 12.0 0 -0.02 |
|
| 16 | 8.0 | 12 | 14 | 16.0 0 -0.02 |
|
• Order: Catalog No.
REMARK
• This is a permanent date stamp where only the central year
insert is changed. The month is changed by using a screwdriver
completely stainless.
• When ordering' ANNUAL"'model,please indicate the year required on the insert.
• When ordering"YEARS"model, please indicate the start/base year.
• Special engravings available on request.
