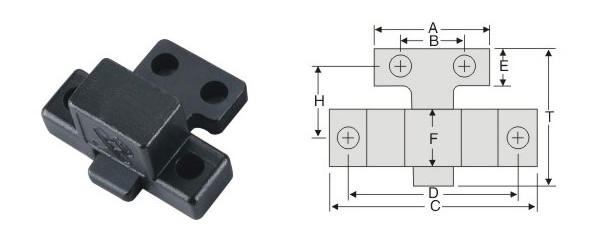

Slide Lock-SL type
JH062
| Material | Hardness |
| SCM21 | HRC55°~60° |
| Type | A | B | C | D | E | F | H | T | Hole | Force（kg） |
| JH062-2S | 40 | 26 | 72 | 60 | 20 | 20 | 23 | 49 | M8 | 60 |
| JH062-2L | 36 | 22 | 66 | 96 | ||||||
| JH062-3S | 50 | 30 | 113 | 90 | 22 | 30 | 38 | 73 | M10 | 80 |
| JH062-3L | 79 | 118 | ||||||||
| JH062-4S | 50 | 30 | 113 | 90 | 22 | 30 | 38 | 73 | M12 | 100 |
| JH062-4L | 25 | 103 | 135 |
Order: Type
Function&Instuctions:
1.Using simple construction, can open and close the mold completely and inter change easily.
2.Excellent for 3-pcs mold plates for its precision injection. It will cut off the excessive materials and leave the mold at the time of finishing.
3.4different clamping force:GLS-2 suit for mold below 5 ounce, GLS-3 suit for medium model, GLS-4 suit for big model.
4.This equipment was made by advanced alloy steel and with heat treatment and millig it adopt imported spring, with rliable quality.
