Characteristics:

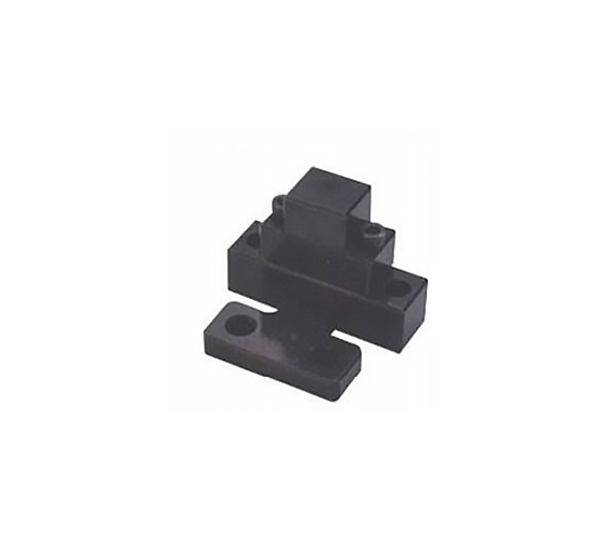

With a simple structure, can use the mold completely open and closed, and the device is simple with high interchangeabllity. The device is most suitable for pin point injection has snapped three template material and release a fully functional. And the use of high-grade alloy steel after heat treatment and grinding, imported spring, reliable quality.

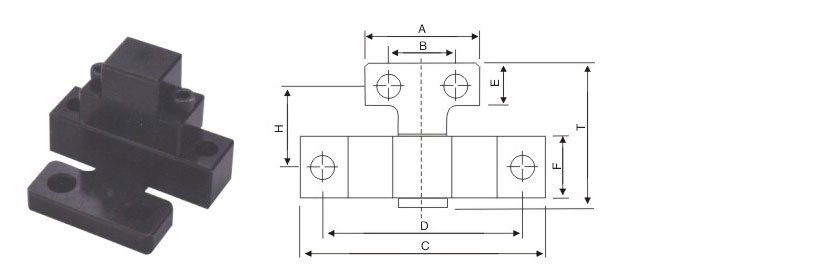

| Type | Size | Hole | Pulling force (Kgf) | |||||||
| A | B | C | D | E | F | H | T | |||
| DPT03A | 40 | 26 | 72 | 60 | 20 | 20 | 23 | 49 | M8 | 250 |
| DPT03B | 36 | 22 | 66 | 96 | ||||||
| DPT03C | 50 | 30 | 113 | 90 | 22 | 30 | 38 | 73 | M10 | 300 |
| DPT03D | 79 | 118 | ||||||||
| DPT03E | 38 | 73 | M12 | 400 | ||||||
| DPT03F | 25 | 103 | 135 | |||||||
Order example for first item(Type No. x Pcs): DPT03A X10
