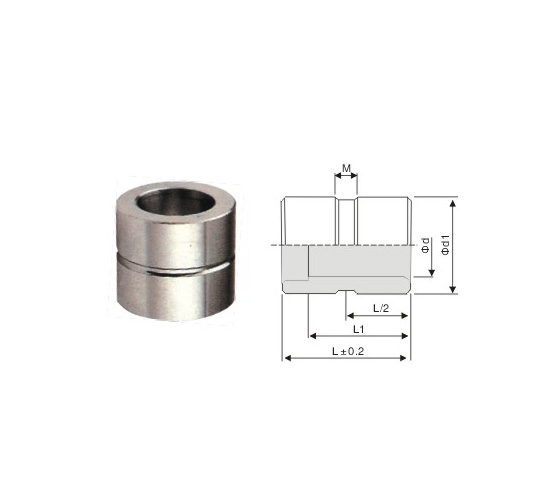

Guide Bush
JH018-2
| Material | Hardness | Heat Treatment |
| SUJ2 | HRC60°±2° | High frequency |
| d | Tolerance | d1 | Tolerance | JH018-1 | JH018-2 | ||
| D | H |
M-L20 below Below 20 |
M-L21 on/above above 21 |
||||
| 10 |
+0.009 |
14 |
+0.018
|
—— | —— | —— | —— |
| 12 |
+0.017 |
18 | 22 | 5 | 4 | 4 | |
| 16 | 25 | +0.021 +0.008 |
30 | 6 (8) |
6 | ||
| 20 |
+0.020 |
30 | 35 | 8 |
——
|
||
| 25 | 35 | +0.025 +0.009 |
40 | 8
|
|||
|
47 |
10
|
||||||
| 30 |
42 |
||||||
| 35 |
+0.025 |
48 |
54 |
||||
| 40 |
55 |
+0.030 +0.011 |
61 |
||||
| 50 | 70 |
76 |
12 | 10 | |||
| 60 | 80 |
86 |
15 | ||||
| 70 | 90 |
96 |
|||||
| 80 | 100 |
106 |
|||||
Order:Catalog No.D×H×d1×d×L
Remark:
1. Special product is available.
2. Price is negotiable if quantity of each size is more than 50 in one order.
