Micro Nitrogen Gas Spring Series-Precision

Micro Series

PDF Download:
View pdf All catalogues
Contact Us

product details

Micro Series:

Reduced dimensions(56-295daN).

Specially suited for high precision systems that require low forces(20~200daN).

Ideal for replacing coil springs.

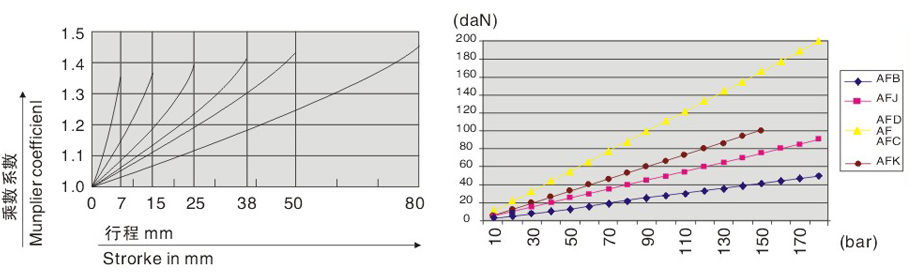

Model Force(da N) Body(mm) Repairable Connectable Filling Port
AFB 50 12 NO NO M6
AFJ 90 19 NO NO M6
AFD 200 25 NO NO M6
AF 200 25 NO NO M6
AFN 200 25 YES NO M6
AFN-A 200 25 YES NO M6
AFC 200 25 YES NO M6
AFK 100 20 YES NO M6







Pressure medium N2
Max.charging pressure 180bar
Min.charging pressure 20bar
Operating temperature 0°~100°
Max.Piston rod speed 1.6m/s
Refillable Yes
Connectable No
Re:  A 10% stroke length allowance is recommended.
        Special Nitrogen Gas Spring out of catalogue are manufactured under order.





Technical Features



Safety Requirements
  1. Nitrogen Gas Spring are containers charged with nitrogen gas at maximum pressure of 180bar.
  1. Do not manipulate any part of Nitrogen Gas Spring without being sure that it is completely discharged.Or you are trained in handling the process of unload.
  1. Azol Nitrogen Gas Spring meet European Community Directive 97/23/CE related to Pressure Equipment Devices(PED). And CE Mark identification only will be laser etched according to the mentioned Directive.
  1. Never handle Nitrogen Gas Spring by personal without the appropriate training, and always following the outlined operating
    instructions from Azol Nitrogen Gas.

***Small Nitrogen Gas Spring specially suited for high precision systems and general applications that require little forces and reduced spaces,
They can be dropped into a pocket in the die or fastened by flanges.
