TB Nitrogen Gas Spring Series-Precision

AG-TB Series

PDF Download:
View pdf All catalogues
Contact Us

product details

TB Nitrogen Gas Spring:

Forces and strokes according to ISO standard.
Lateral filling port:1/8" Nitrogen.
Higher Nitrogen volume.
Lower pressure rate increase.
Longer life expectancy.

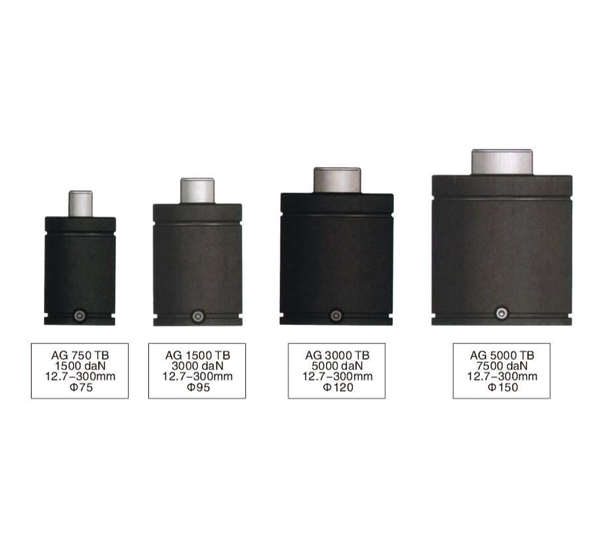

AG-TB Series

Model Force(da N) Body(mm) Repairable Connectable Filling Port
AG-750 TB 750 75 YES YES 1/8" Gas
AG-1500 TB 1500 95 YES YES 1/8" Gas
AG-3000 TB 3000 120 YES YES 1/8" Gas
AG-5000 TB 5000 150 YES YES 1/8" Gas



Pressure medium N2
Max.charging pressure 150bar
Min.charging pressure 20bar
Operating temperature 0°~110°
Max.Piston rod speed 2m/s
Refillable Yes
Connectable Yes
Re:  A 10% stroke length allowance is recommended.
        Special Nitrogen Gas Spring out of catalogue are manufactured under order.

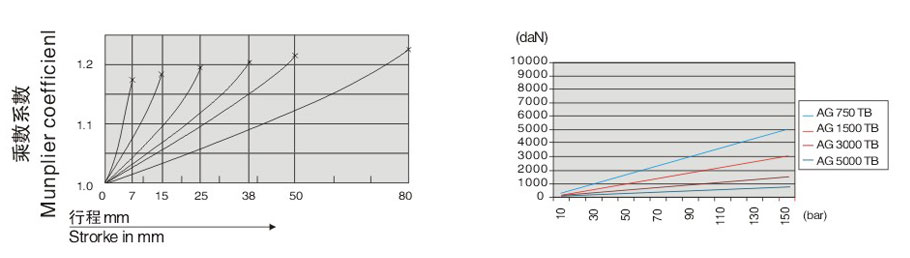

Technical Features


Safety Requirements
  1. Nitrogen Gas Spring are containers charged with nitrogen gas at maximum pressure of 150bar.
  1. Do not manipulate any part of Nitrogen Gas Spring without being sure that it is completely discharged.Or you are trained in handling the process of unload.
  1. Azol Nitrogen Gas Spring meet European Community Directive 97/23/CE related to Pressure Equipment Devices(PED). And CE Mark identification only will be laser etched according to the mentioned Directive.
  1. Never handle Nitrogen Gas Spring by personal without the appropriate training, and always following the outlined operating instructions from Azol Nitrogen Gas Spring.

TB Nitrogen GasSprings are recommended to be used on increasing equipment suitable for low elasticity.
Forces range 750~3000daN
Available strokes 12.7~300mm
Diameters 50~95mm
Lateral filling port 1/8"Gas
