Traction Nitrogen Gas Spring Series

AG Series

PDF Download:
View pdf All catalogues
Contact Us

product details

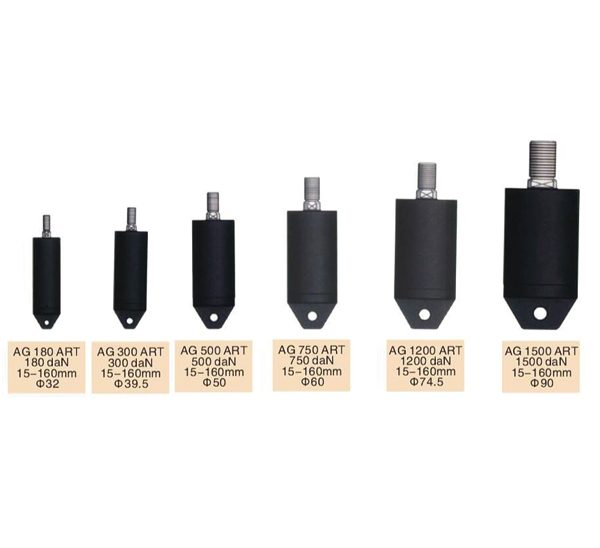

Traction Nitrogen Gas Spring series:

Model Force(da N) Body(mm) Repairable Connectable Filling Port
AG 180 ART 180 32 YES NO 1/8"Gas
AG 300 ART 300 39.5 YES NO 1/8"Gas
AG 500 ART 500 50 YES NO 1/8"Gas
AG 750 ART 750 60 YES NO 1/8"Gas
AG 1200 ART 1200 74.5 YES NO 1/8"Gas
AG 1500 ART 1500 90 YES NO 1/8"Gas











Pressure medium N2
Max.charging pressure 150bar
Min.charging pressure 20bar
Operating temperature 0°~100°
Max.Piston rod speed 0.5m/s
Refillable Yes
Connectable Yes
Re:  A 10% stroke length allowance is recommended.
        Special Nitrogen Gas Spring out of catalogue are manufactured under order.





Technical Features



Safety Requirements
  1. Nitrogen Gas Spring are containers charged with nitrogen gas at maximum pressure of 150bar.
  1. Do not manipulate any part of Nitrogen Gas Spring without being sure that it is completely discharged.Or you are trained in handling the process of unload.
  1. Azol Nitrogen Gas Spring meet European Community Directive 97/23/CE related to Pressure Equipment Devices(PED). And CE Mark identification only will be laser etched according to the mentioned Directive.
  1. Never handle Nitrogen Gas Spring by personal without the appropriate training, and always following the outlined operating instructions from Azol Nitrogen Gas .
