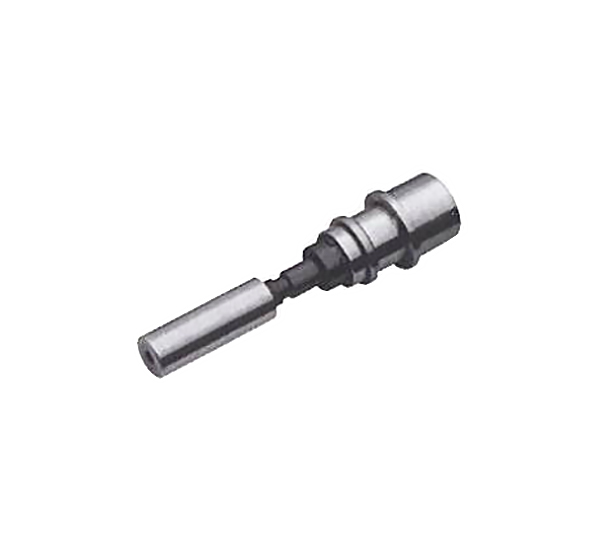

Characteristics:
Machinery interlocking design makes structure much simpler and installation more convenient comparing with other second ejection series.

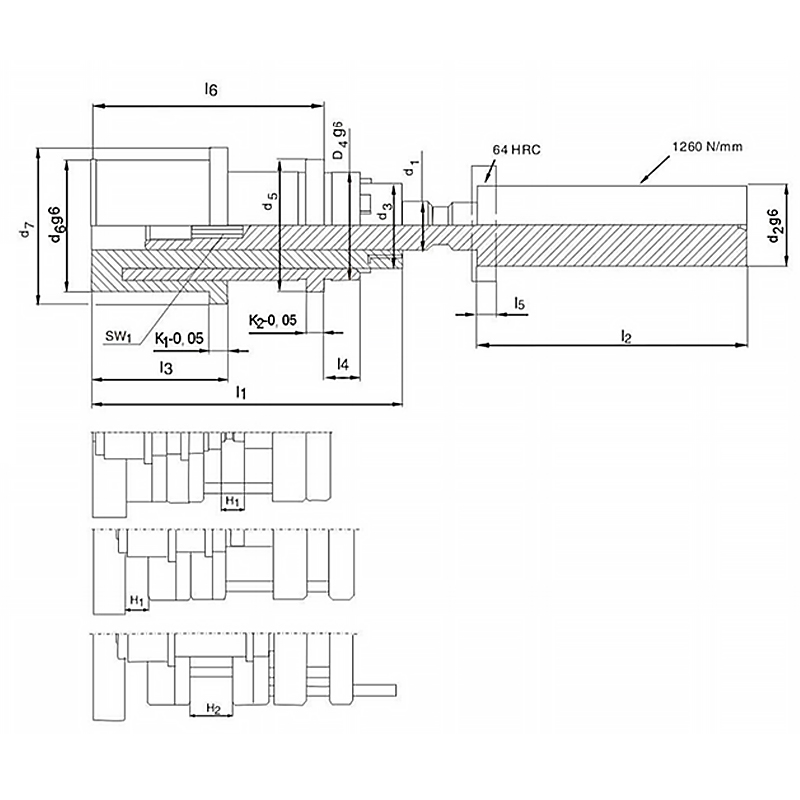

| Type | Sw1 | K2 | K1 | I6 | I5 | I4 | I3 | I2 | I1 | d7 | d6 | d5 | d4 | d3 | d2 | H1 | H2 | d1 | ||
| min | max | min | max | |||||||||||||||||
| Z1697/16 | 8 | 6 | 6 | 77 | 5 | 12 | 45 | 90 | 103 | 52 | 44 | 43 | 36 | 28 | 27 | 6 | 76 | 3 | 76 | 16 |
| 20 | 10 | 7 | 7 | 101 | 6 | 17 | 59 | 100 | 134 | 59 | 51 | 51 | 34 | 32 | 8 | 93 | 4 | 96 | 20 | |
| 26 | 14 | 8 | 8 | 126 | 7 | 22 | 74 | 150 | 168 | 73 | 64 | 63 | 54 | 43 | 42 | 10 | 130 | 5 | 130 | 26 |
• Order example for first item(Type No.D1 x Pcs): Z1697-16x10
