Early Ejector Return Assembly

Z173

PDF Download:
View pdf All catalogues
Contact Us

product details

Characteristics:

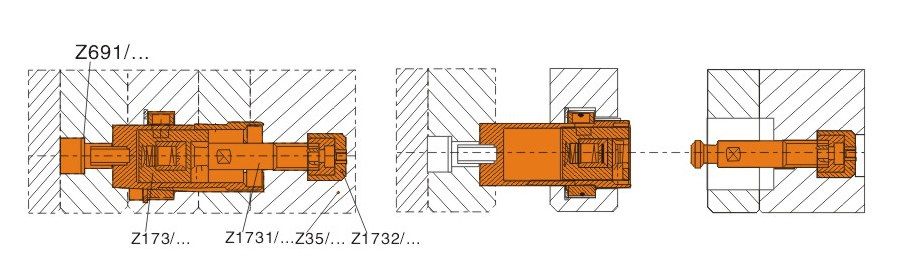

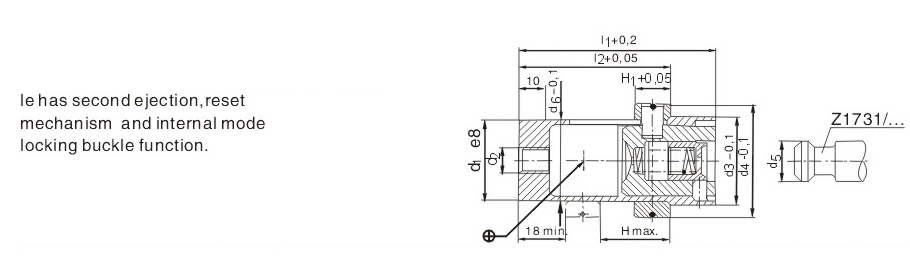

It has second ejection, reset mechanism and internal mode locking buckle function.



Type

h2

l1

d6

d5

d4

d3

d2

H min.

d1

H max.

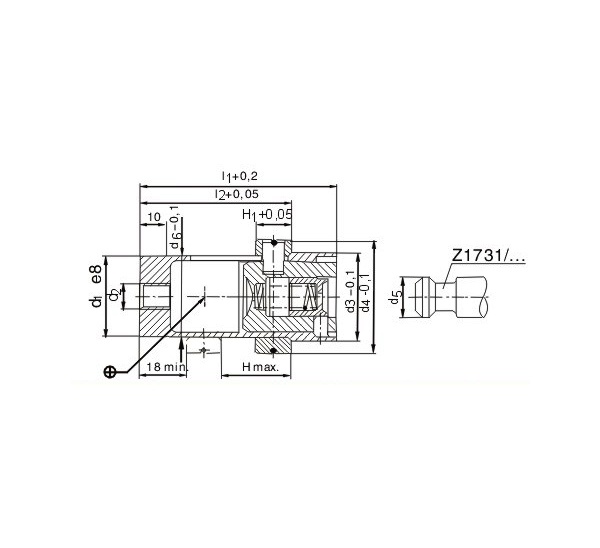

Z173/32x28

14

60

78

32.2

14

44.8

34.8

M10

6

32

28

               32x56

88

106

56

               38x36

16

70

90

38.2

18

51.8

40.8

M12

8

38

36

               38x71

105

125

71

Type

SW1

SW2

l6

l3

l2

d6

d5

l1

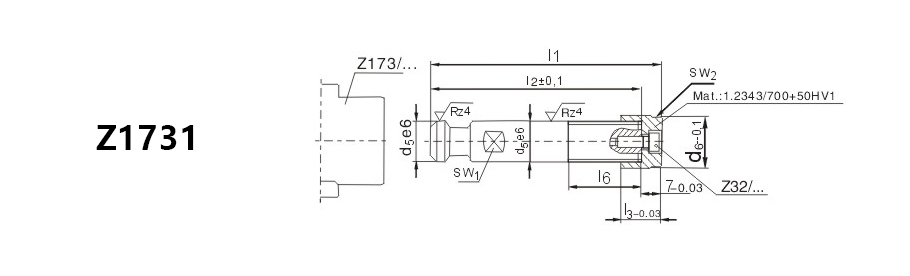

Z1731/14x63

12

15

20

14

16

56

18.5

14

63

                 14x80

25

73

80

                14x100

93

100

                14x125

118

125

Z1731/18x80

15

19

20

16

73

23.5

18

80

               18x100

30

93

100

                18x125

118

125

                 18x140

133

140

Type

l4

l3

d8

d7

d5

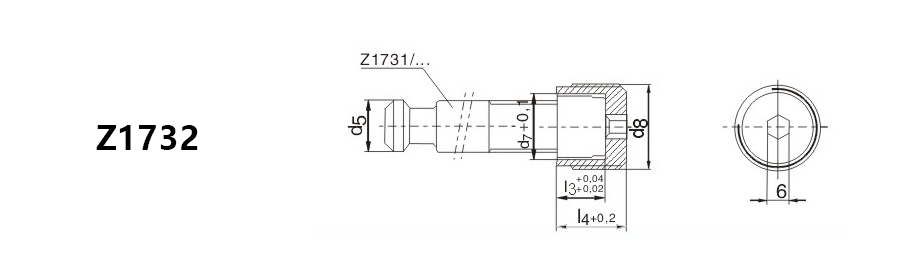

Z1732/14

20

14

M24x1

19

14

                 18

22

16

M30x1.5

24

18
