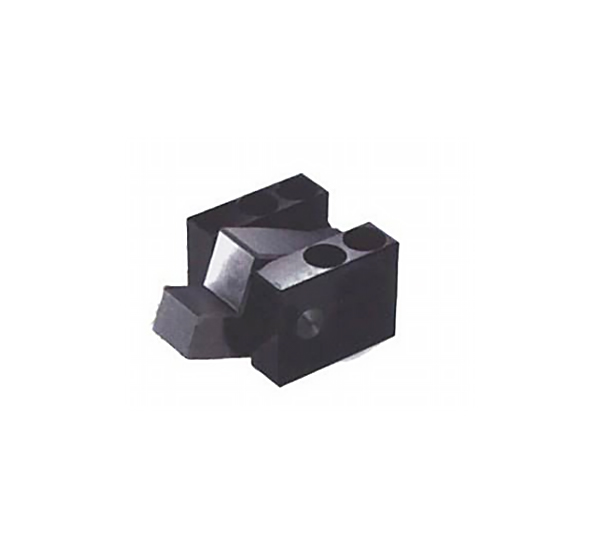

Accelerated Ejector

AED

PDF Download:
View pdf All catalogues
Contact Us

product details

Characteristics:

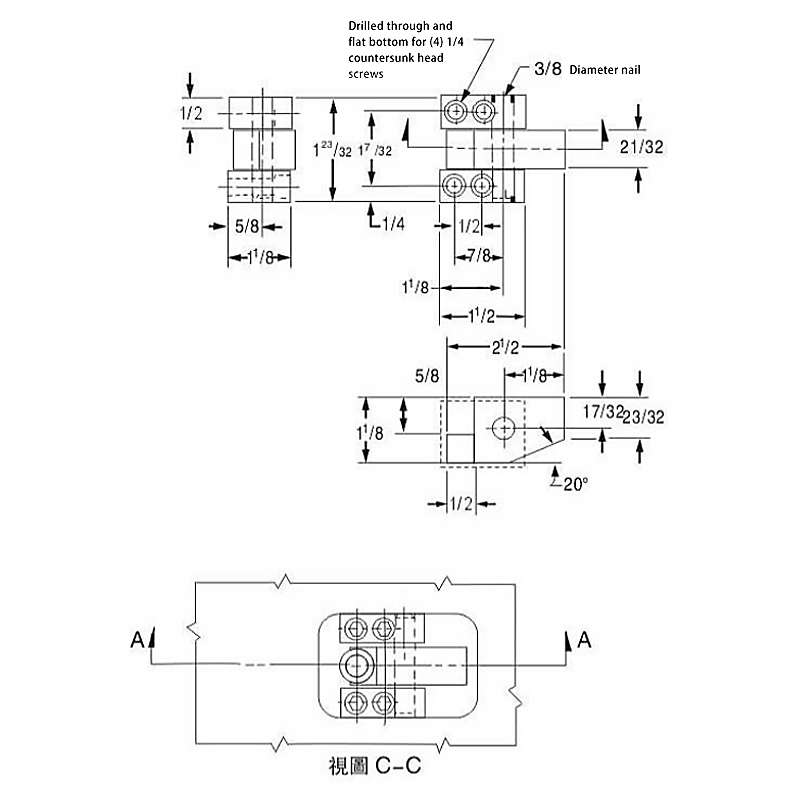

The Accelerated knock-Outs are simple in design. Using a pivot-type motion for accelerated ejection.machanical advantage is 1:1. They will accommodate ejector pins up to 3/8" diameter, (pin with head diameters greater than 5/8"can be ground down to fit.) Simplicity of design permits Accelerated knock-Outs either to be inserted into the ejector plate(as shown below) or top-mounted, depending on space available for the ejection movement.

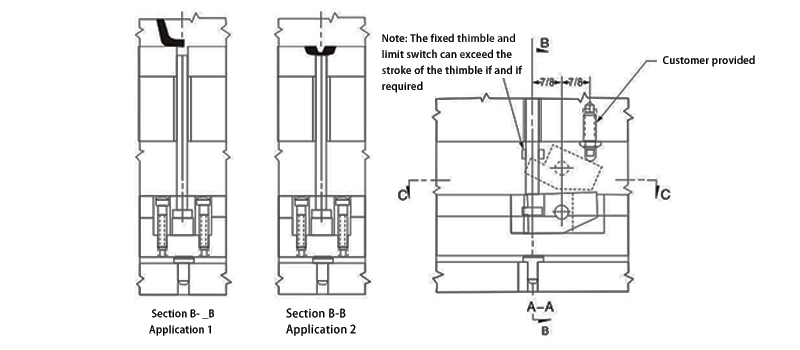

Typical applications
