Sling Ejector Pin

JHN01

MaterialHardness
1.8159HRC45°±3°
PDF Download:
View pdf All catalogues
Contact Us

product details

TypeDimention
ABCDEGHKLR
JHN01-166.22293.540253.5125M4
JHN01-28.2
JHN01-388.22511.54.550304.5140M5
JHN01-410.2
JHN01-512.2
JHN01-61014.230155.560385.5175M6
JHN01-716.2
JHN01-818.2

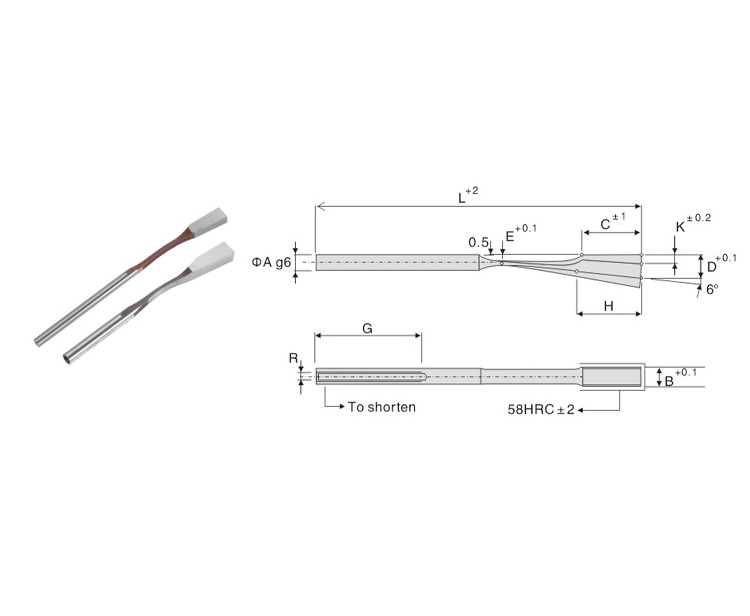

It's made from spring steel, release elasticity at bottom as standard ejector pins, and fulfill it's function by eject plate.



Remark:

If these products can not meet your need, or you have any question about our design, please contact our technical department to find the best solution.



Note:

The length of component which use to sustain sling ejector pin must be same as the size of "H".
The length of adjust part must at least 1/3 of the size of "C".
The size of protrude partin sling ejector pin must equal or small than the size of"C".
The thickness of locating plate of the sling ejector pin must more than 15mm at any time.
