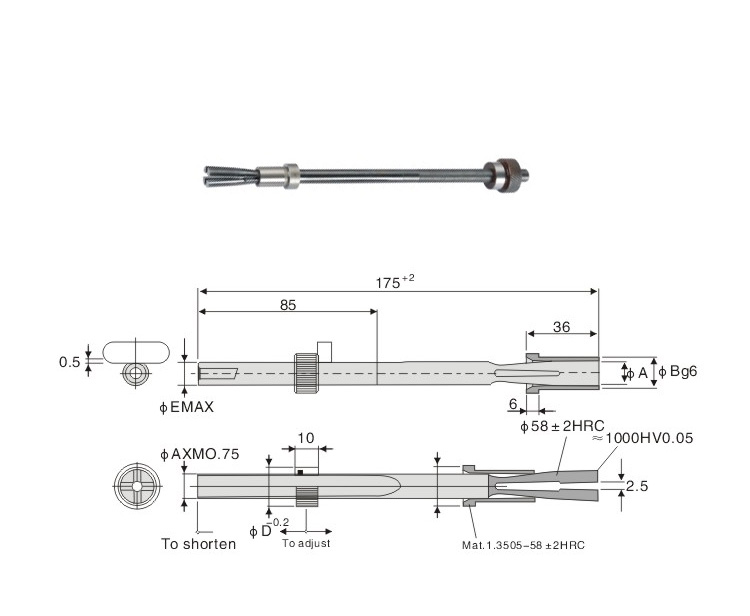

Sling Ejector Pin
JHN06
| Material | Hardness |
| 1.2101 | HRC45°±3° |
| Type | Dimention | |||||
| A | B | C | D | E | H | |
| JHN06-1 | 6 | 10 | 12 | 12 | - | 9 |
| JHN06-2 | 8 | 12 | 14 | 14 | 2 | 11 |
| JHN06-3 | 10 | 14 | 16 | 16 | 3 | 13 |
| JHN06-4 | 12 | 16 | 18 | 18 | 4 | 15 |
Special products' length are between 275~350mm.

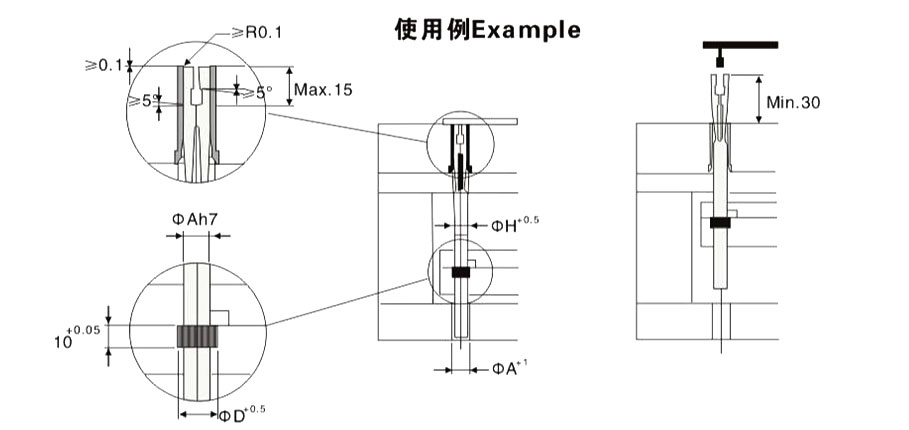

Apply to release elasticity from bottom, the ejector device can adjust to required eject height in advance. Easy to install and keep 90° with the devided surface when install it.
